LEMAN ATLAS

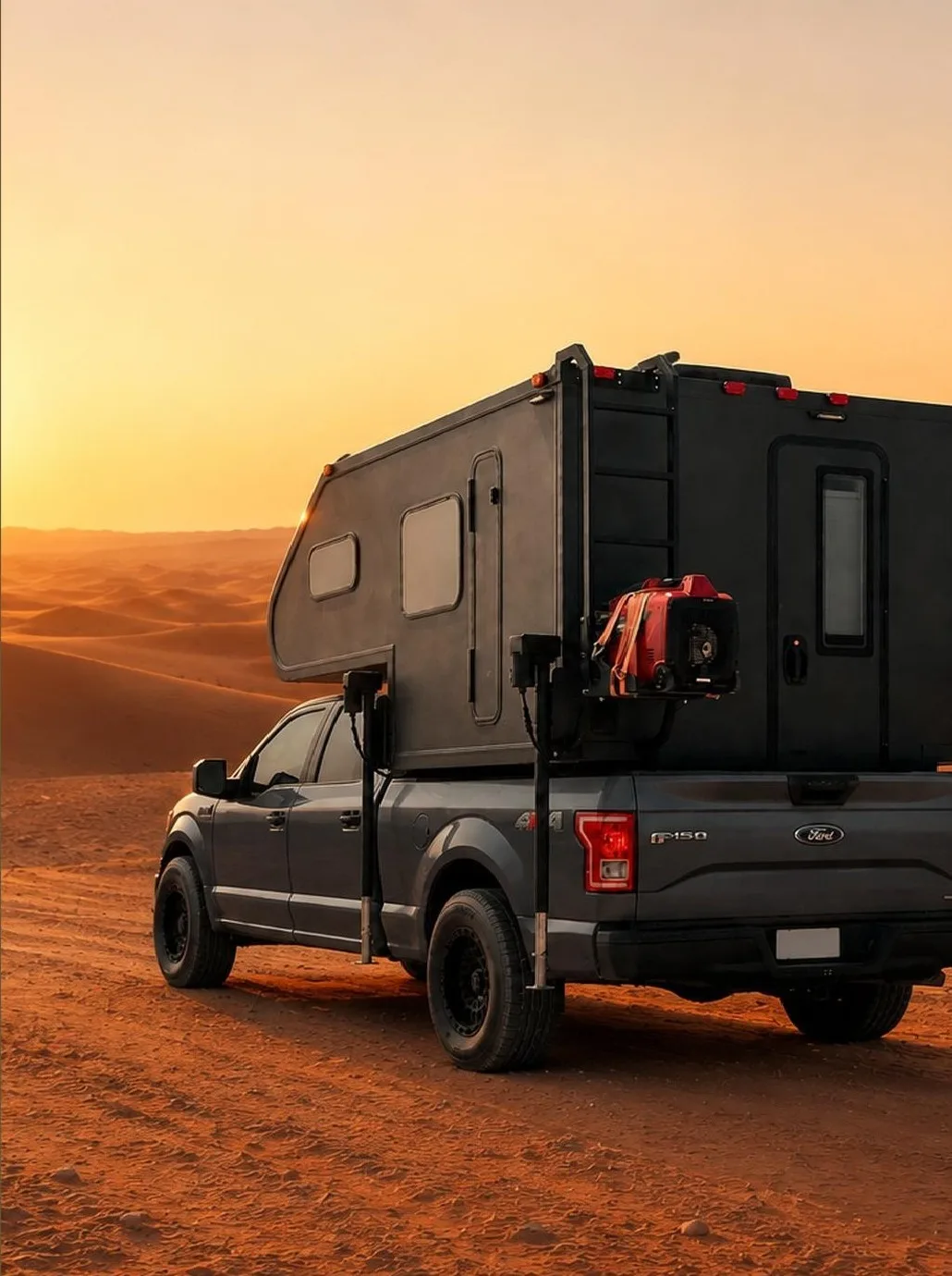

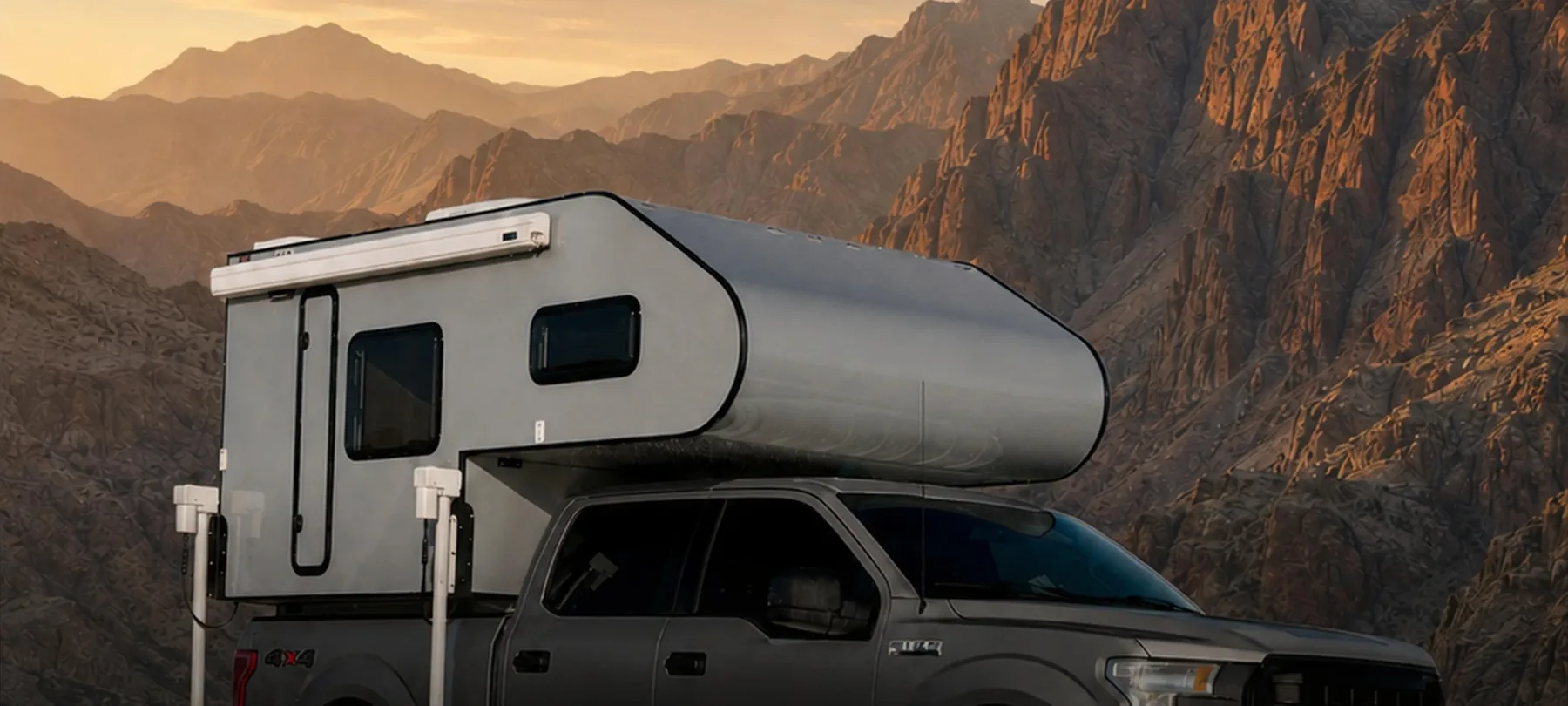

A compact slide-in camper built for 5.5 ft and 6.5 ft pickup beds, ATLAS packs a king-size sleeping platform, a convertible lounge, a dedicated wet room and solar-backed power into a body engineered for independent, self-sufficient touring across the UAE and beyond.
A compact footprint with complete touring capability
ATLAS is built as one complete, travel-ready system — sized to sit on a 5.5 ft or 6.5 ft pickup bed without pushing past what the truck was designed to carry. Inside, a fiberglass body with an internal partition keeps the cabin quiet and insulated, while four electric support jacks make loading, unloading and levelling a one-person job.
Everything needed for independent travel is already on board: solar charging, a 12 V refrigerator, a dedicated shower and toilet room, and a convertible lounge that opens into extra sleeping space when the trip calls for it.
Technical composition
Every figure below is part of the standard ATLAS build. Final configuration is confirmed against your chassis before production begins.
Dimensions & Construction
- Overall length: 3,750 mm
- Overall width: 2,100 mm
- Body height: 2,215 mm
- Fiberglass body with internal partition
- European entry door: 1,800 × 580 mm
- Fits 5.5 ft and 6.5 ft pickup beds
Climate, Electrical & Solar
- 12,000 BTU inverter air conditioner (R32)
- 380 W solar array
- MPPT controller with Bluetooth monitoring
- 150 Ah / 12 V AGM battery
- Four electric jacks with controller
- 220 V, 12 V and USB power points
Water & Bathroom
- Fresh water tank: 125 L
- Grey water tank: 30 L
- Black water tank: 45 L

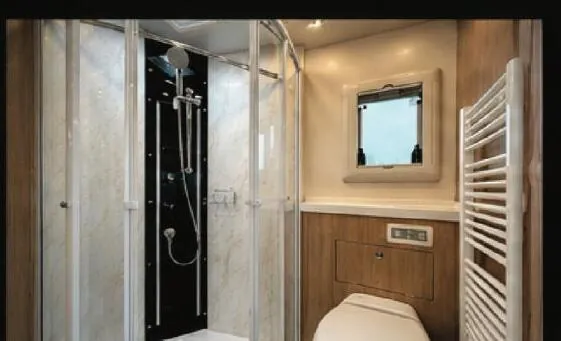

- Dedicated shower and toilet room
- 220 V water heater, gravity-flush toilet
- Exterior shower and water inlet
Living & Sleeping
- King-size bed and mattress
- Convertible lounge / extra bed: 750 × 2,000 mm
- 65 L / 12 V refrigerator

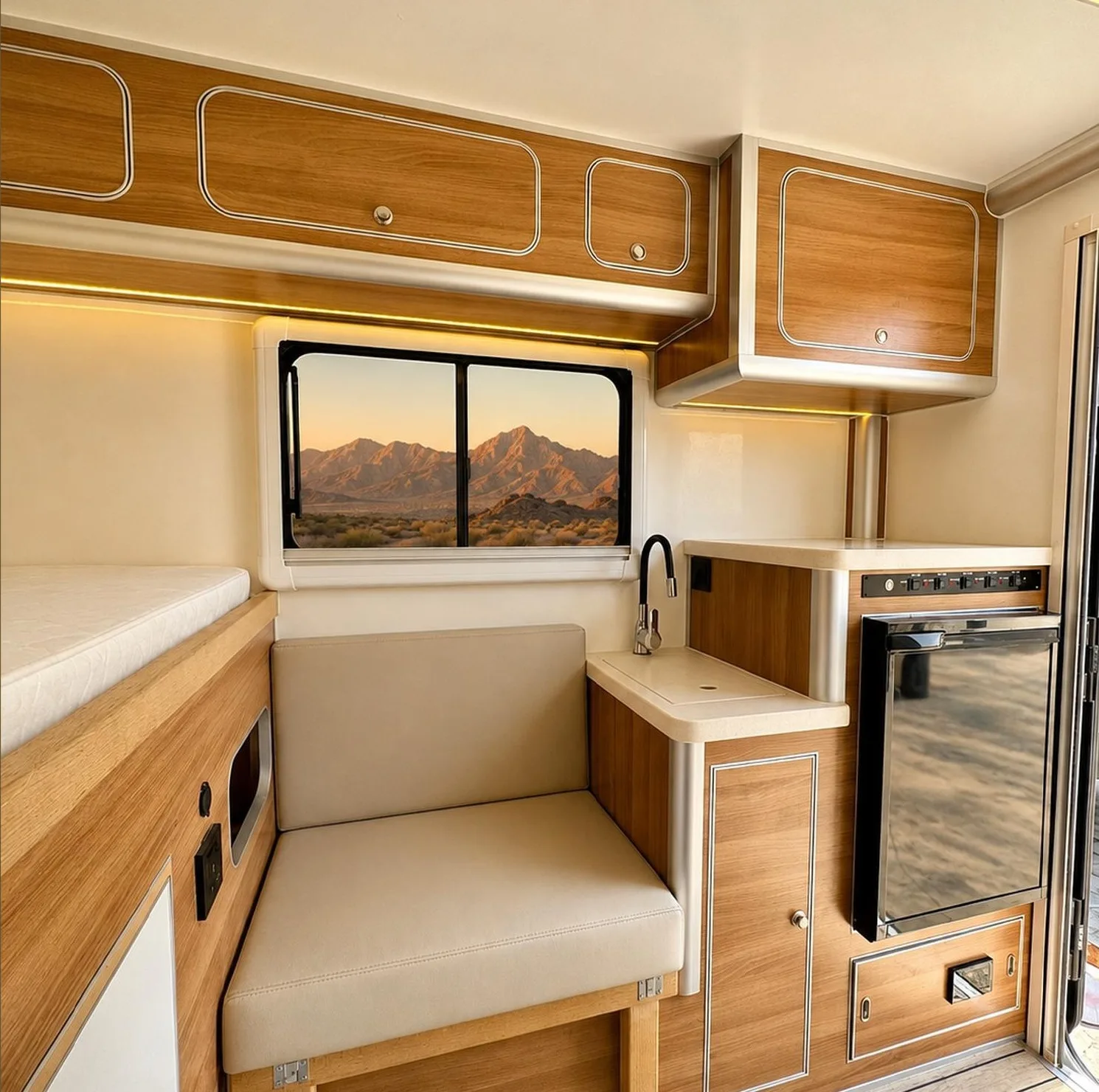

- Living-area sink and folding table
- Overhead storage on both sides
- Storage inside both sofas
Everything essential, integrated
ATLAS ships as one complete system. Nothing shown here is an aftermarket add-on.
Fiberglass Body
Durable shell with internal partition
Acrylic Windows
Multiple sizes, blinds and mosquito screens
European Entry Door
1,800 × 580 mm access door
Electric Support Jacks
Four-leg system with controller
Roof Air Conditioner
12,000 BTU integrated climate unit
Rear Ladder
Secure access to roof equipment

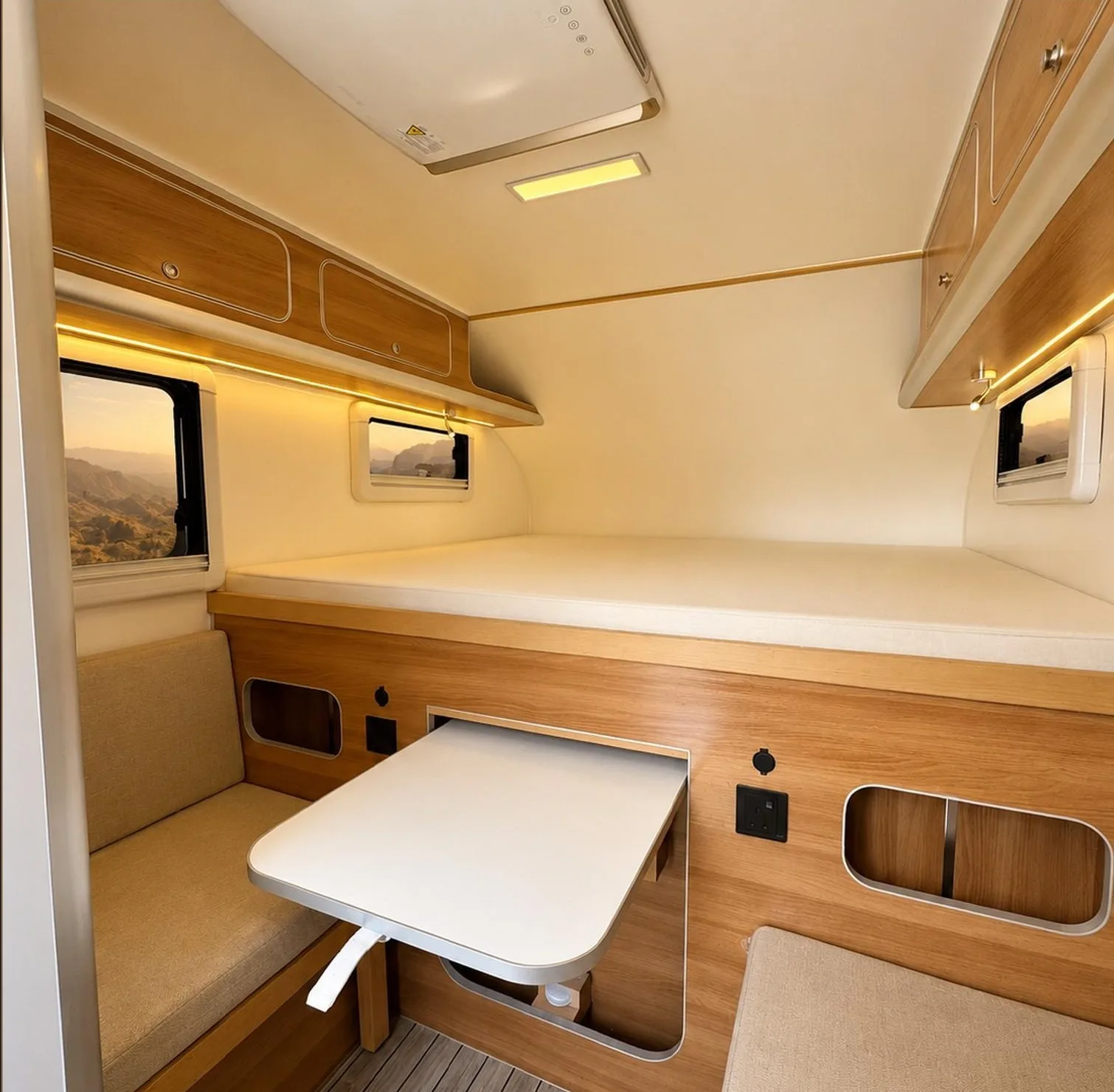

King-Size Sleeping
Spacious elevated bed platform
Folding Dining Table
Flexible dining and work surface
65 L Refrigerator
Efficient 12 V refrigeration

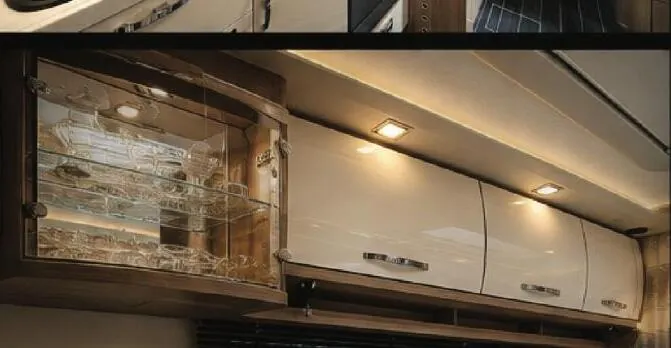

Integrated LED Lighting
Warm, efficient furniture lighting

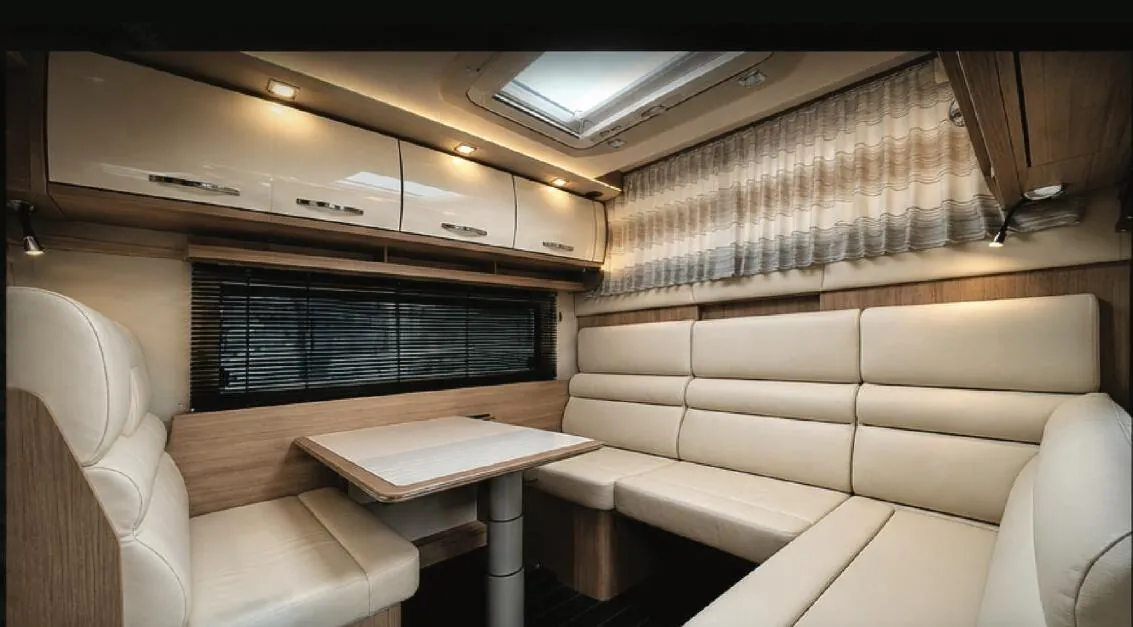

Built by hand, finished to last
The same joinery, upholstery and lighting standard across every Leman DXB build — carried through into ATLAS.
General layout & side profile
All dimensions in millimetres. King sleeping platform, twin lounge seats, folding table and a compact wet room, laid out front to back.
Finish & colour options
Choose one interior cabinetry finish and one exterior gelcoat colour. Each is applied consistently across the full build.
Interior cabinetry finish
Applied across overhead lockers, sofa cabinetry, the folding table and wet-room joinery.
Exterior body colour
Ten gelcoat finishes for the ATLAS body shell, from understated neutrals to expedition-ready tones.

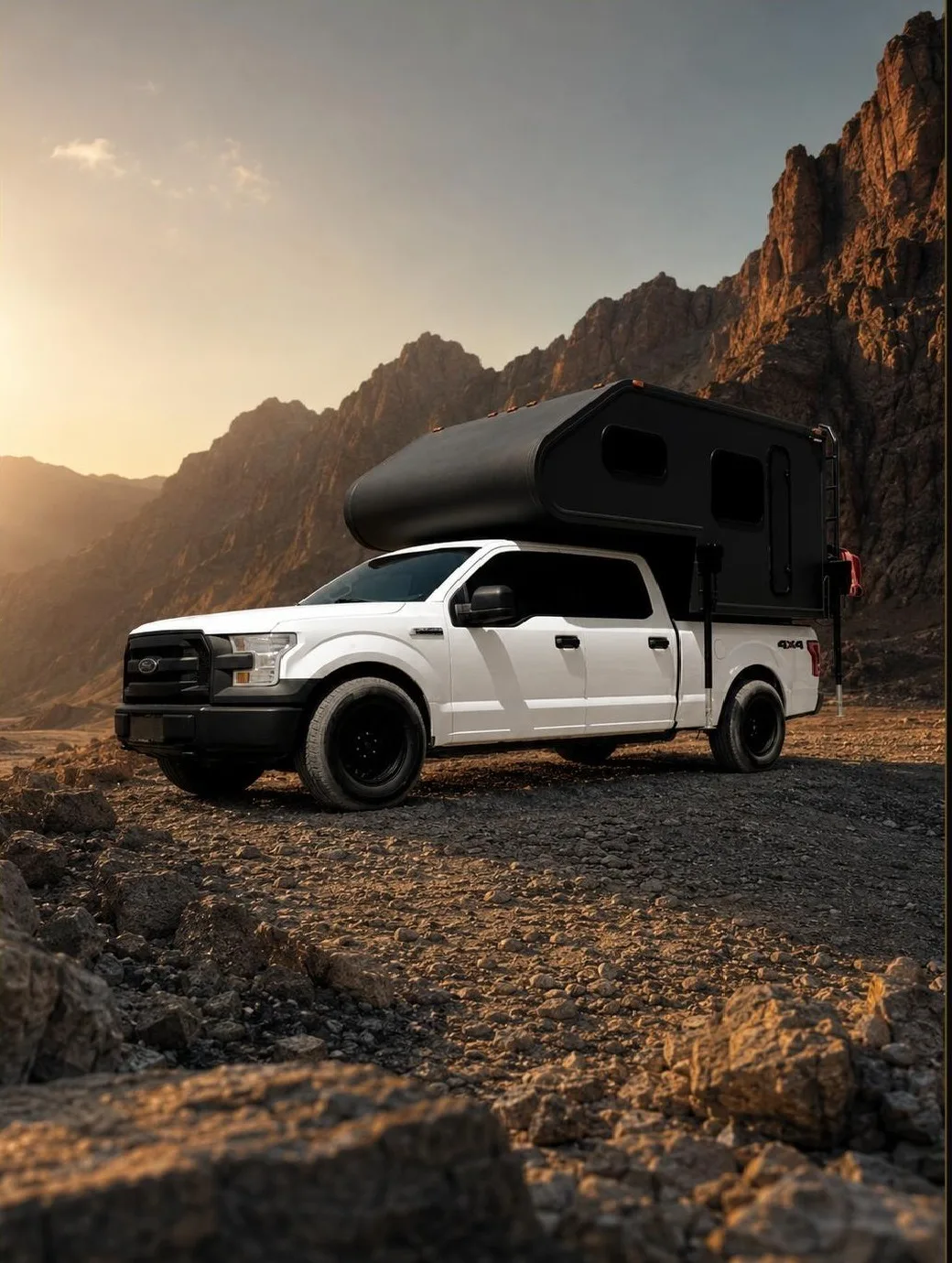

One camper. Any destination.
ATLAS is built and tested for the conditions Leman DXB customers actually drive through.
Ready to build your LEMAN ATLAS?
Tell us your truck’s bed length and the way you travel — our team will confirm configuration, finish and delivery.
